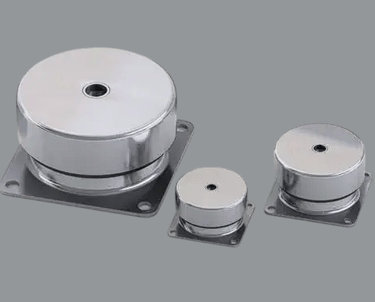

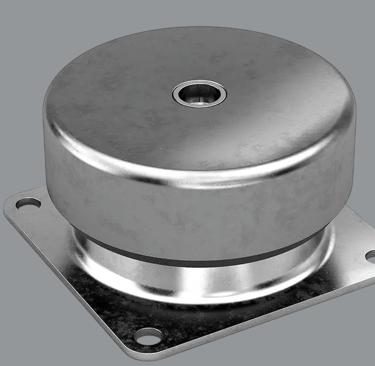

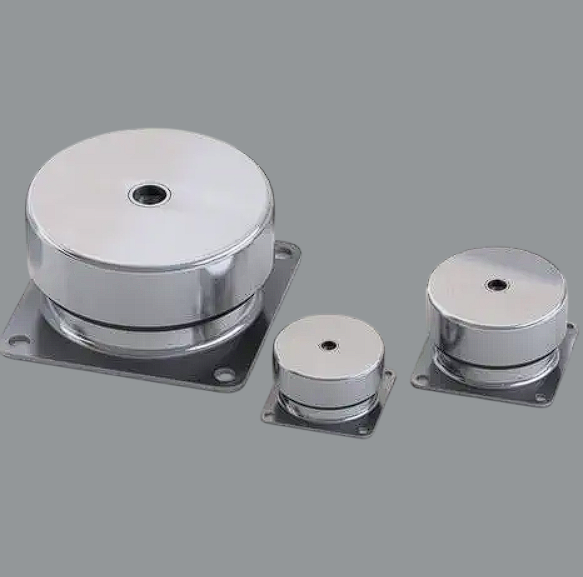

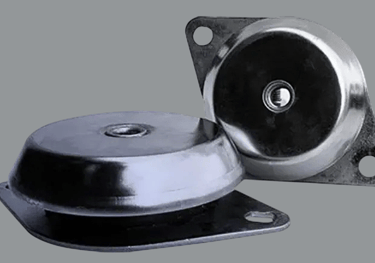

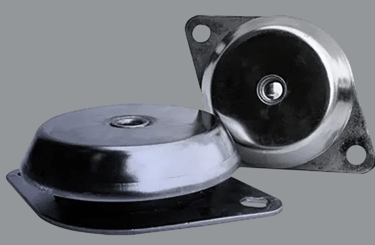

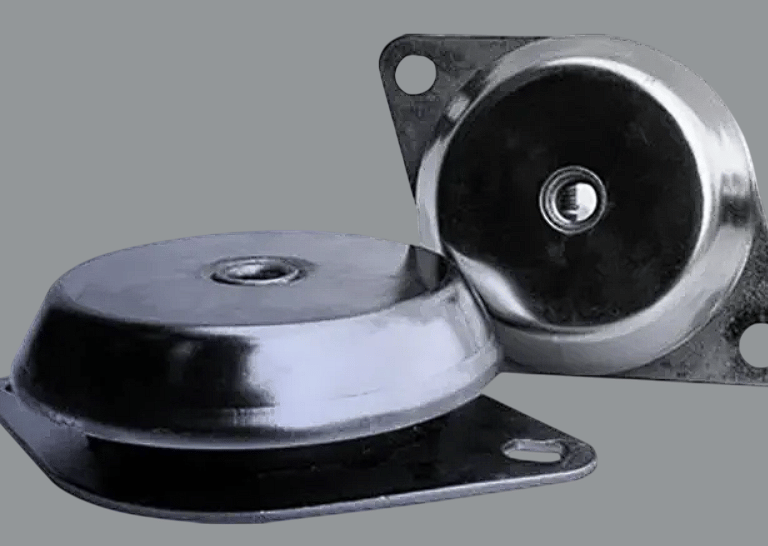

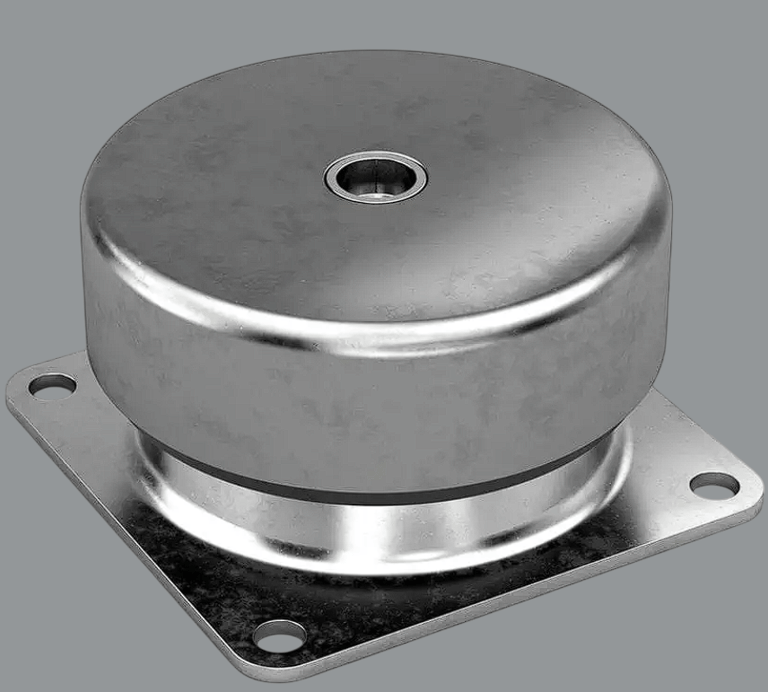

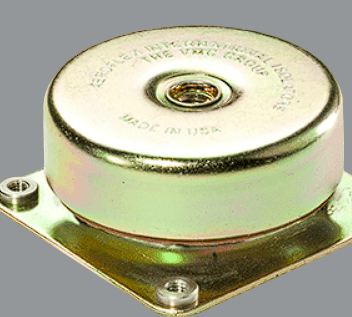

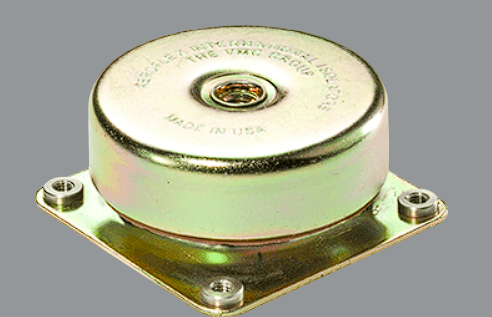

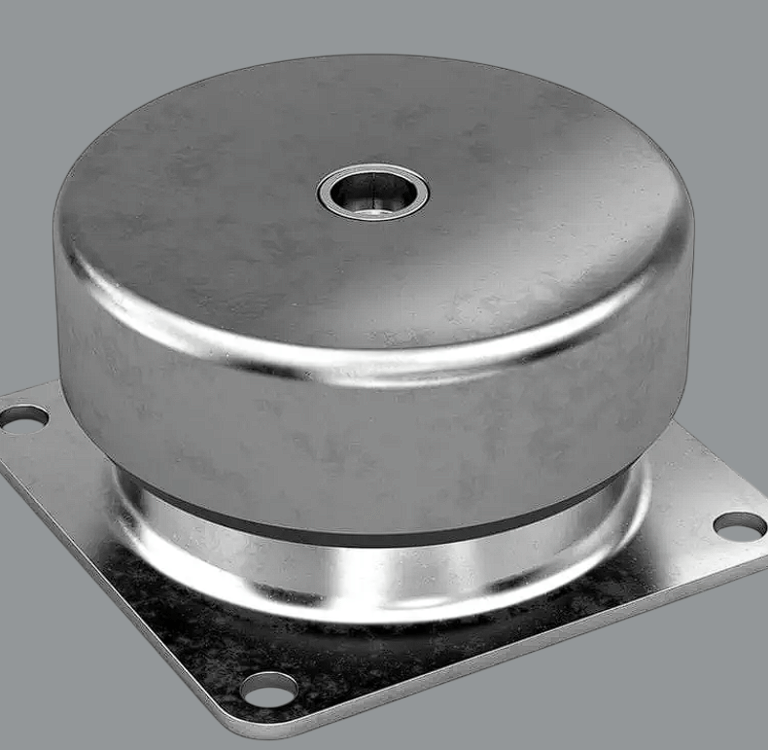

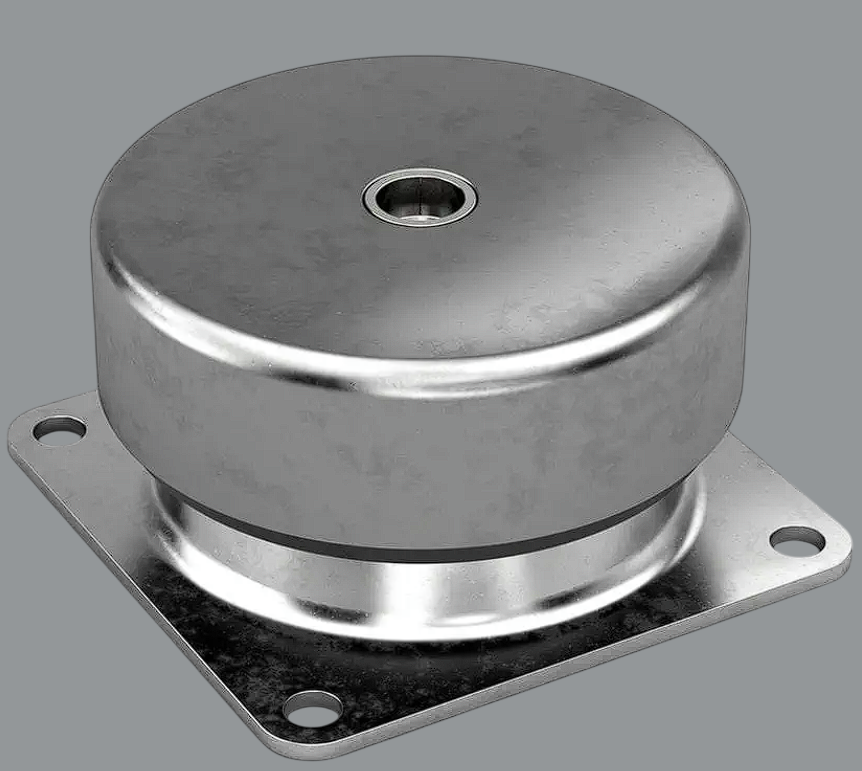

Flexocup Mount (Cup Type Mount)

All-Attitude Shock & Vibration Isolation for Critical Equipment

Flexocup Mounts are specialized rubber-metal bonded shock and vibration isolators, uniquely designed to protect sensitive equipment from high-impact shocks, medium to high-frequency vibrations, and structure-borne noise. Their self-captivating, fail-safe design makes them ideal for mobile and stationary installations—functioning reliably across all orientations and load directions.

These mounts consist of cupped interlocking metal components with rubber elements compressed between them. This construction allows safe, durable performance under axial, radial, upright, or inverted loading, offering 360° shock protection and vibration isolation.

Key Features

· All-directional shock and vibration isolation

· Fail-safe rugged steel construction

· Wide load range: 1.4 kg to 817 kg

· Low installation height with nominal 30 Hz natural frequency

· Low transmissibility at resonance

· Self-captivating—suitable for harsh mobile environments

· Can be installed in upright, inverted, or angled orientations

· Optional tandem paired isolators for higher deflection or lower frequency needs

Typical Applications

Ideal for installations exposed to impacts, shocks, or dynamic movement:

· Military & commercial vehicles and ships

· Electronic enclosures and control panels

· Motors, fans, blowers, and industrial machinery

· Centrifuges and transformers

· Railroad and marine equipment

· Radar and communication devices on land, sea, or air

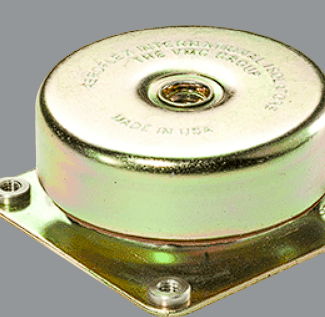

Flexofloat Mount (Flexofloat Rubber Mounts)

Compact, Captive Mounting for Vibration Isolation in Tight Spaces

Flexofloat Mounts are compact, rubber-metal bonded anti-vibration isolators, designed for equipment installations where space is limited but high vibration damping is essential. These mounts feature a low-height profile and a captive design, making them ideal for stationary and mobile applications such as machinery, vehicles, ships, and industrial units.

What makes Flexofloat unique is its directional stiffness control:

· Axial and transverse stiffness are equal,

· While longitudinal stiffness is 2.5x the vertical stiffness.
This helps limit movement in one horizontal direction, which is beneficial in installations exposed to unidirectional shock or motion.

Key Features

· Low height and compact design — ideal for confined spaces

· Directional stiffness with enhanced longitudinal support

· Built-in overload and rebound protection to absorb excessive movement

· Constructed with plated metal cover and high-grade bonded rubber insert

· Provides reliable performance under dynamic load conditions

· Rated load capacity: up to 1000 kg

· Maximum static deflection: up to 6.5 mm

🔧 Typical Applications

Flexofloat Mounts are commonly used in:

· Air Conditioning Units

· Blowers and Compressors

· Business Machines & Office Equipment

· Control Panels & Cabinets

· Light industrial machinery where vibration control is critical in compact spaces

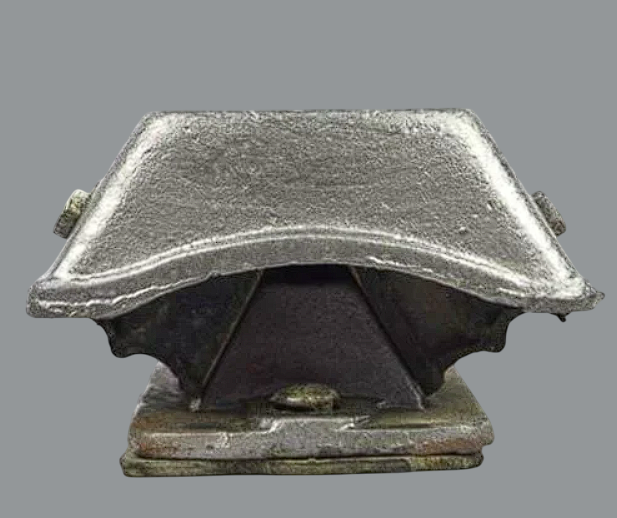

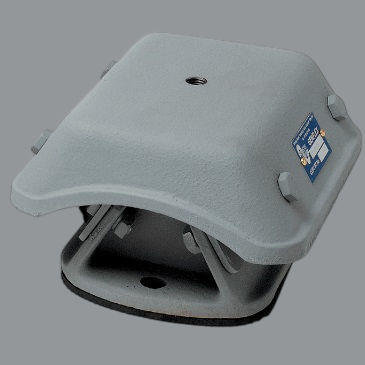

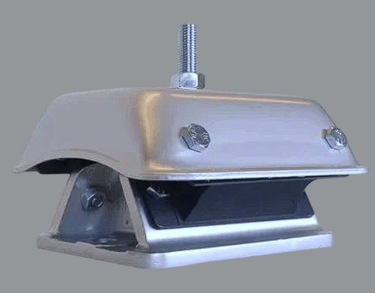

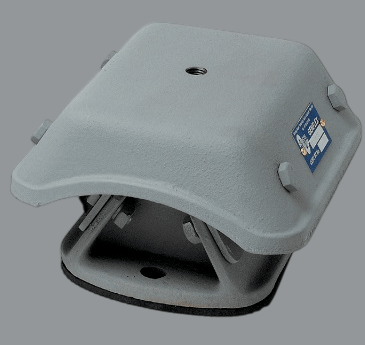

Genflexo Mount (Genflexo Rubber Mounting)

High-Deflection Vibration Isolators for Low-Frequency Machinery

Genflexo Mounts are advanced rubber-metal bonded isolators, engineered with inclined rubber elements to provide exceptional deflection and low-frequency vibration isolation. Unlike standard rubber mounts that work purely in compression, Genflexo utilizes a combination of compression and shear forces, enabling it to outperform traditional mounts in challenging industrial and mobile environments.

Crafted from premium natural rubber, Genflexo delivers high damping and excellent isolation in the audible frequency range — far superior to metal spring mounts, even those with “noise stop” pads.

Designed for both stationary and mobile applications, the Genflexo series also includes marine-grade versions with built-in overload and rebound buffers, ensuring safety in harsh dynamic conditions such as engine startup or load surges.

Design Features

· Rubber elements mounted at an inclined angle for increased deflection

· Combines compression and shear for superior low-frequency isolation

· Manufactured from first-grade natural rubber

· Dual horizontal stiffness axes — for optimized vibration orientation

· Extended top casting skirt protects rubber from oil contamination

· Available in standard B series and HD (High Deflection) series

· Optional marine/mobile variant with integrated overload buffer

· Supplied with ribbed rubber base pad — avoids need for HD bolts

· Standard cast iron body; steel option for shock applications

Typical Applications

Genflexo Mounts are widely used in:

· Diesel Generator Sets

· Chillers and Cooling Towers

· Engine Test Beds

· Large AHUs and Industrial Fans

· Marine Propulsion Engines

· Lift Motor Gears

· Pumps and Compressors

· Vibrating Screens, Hoppers, and Conveyors

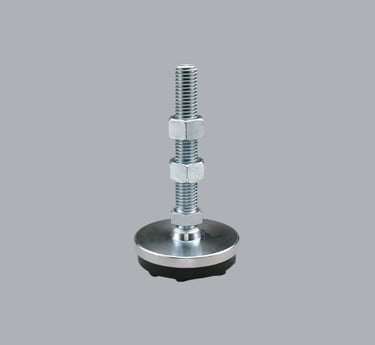

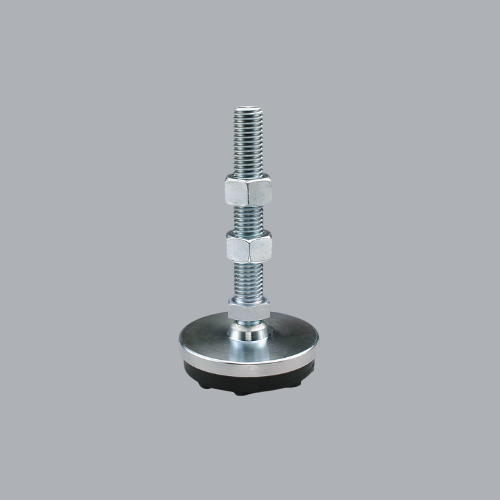

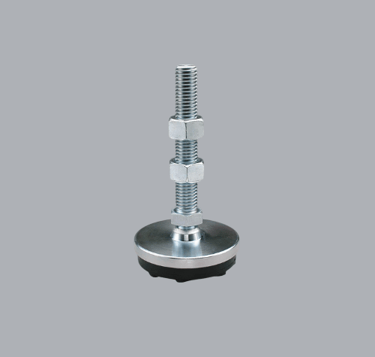

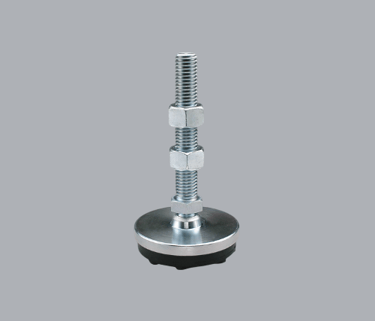

Machine MOUNT

Simple, Compact Vibration Isolator for Precision Machinery & Equipment

Machine Mounts from Flexotech are compact and durable rubber-metal bonded isolators used to reduce vibration and shock transmission from various types of light and medium-duty machinery. Designed with a threaded stud integrated into the mounting, these mounts allow easy and direct installation onto machine bases or support frames without the need for complex brackets or fixtures.

Machine Mounts are ideal for precision equipment, offering excellent resistance to vibration, shock, and light impact. The bonded rubber core absorbs dynamic loads while isolating the structure from vibrations, helping extend machine life and improve operator comfort.

Design Features

• Threaded stud-type design for quick and secure installation

• Natural rubber bonding for excellent damping of both shock and vibration

• Simple structure allows compact mounting in tight spaces

• Available in various stud sizes, diameters, and rubber hardness levels

• Effective in both horizontal and vertical vibration isolation

• Long service life even under intermittent dynamic loading

• Optional anti-skid rubber base for floor protection

Key Benefits

• Reduces structure-borne noise and equipment fatigue

• Increases machinery stability and operating precision

• Easy to install — no welding or brackets required

• Low-cost alternative to complex isolation systems

• Available in standard and customized sizes

Applications

Perfect for:

• CNC Machines and Milling Equipment

• Electronic Panels and Test Equipment

• Industrial Blowers and Motors

• Laboratory Instruments

• Compressors, Fans, and Generators

• Small Pumps and Vibratory Devices

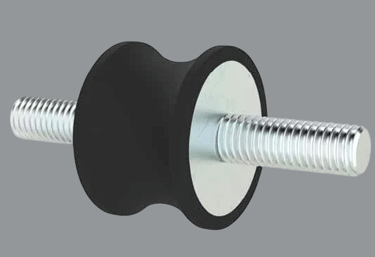

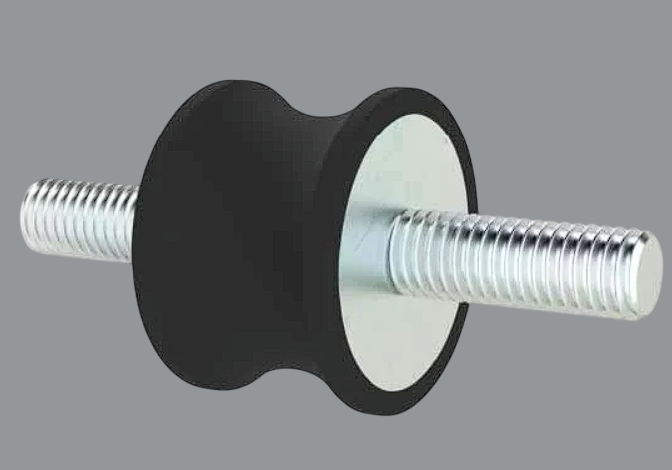

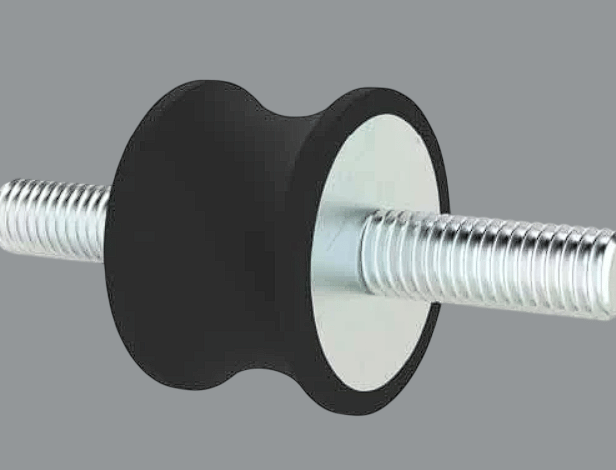

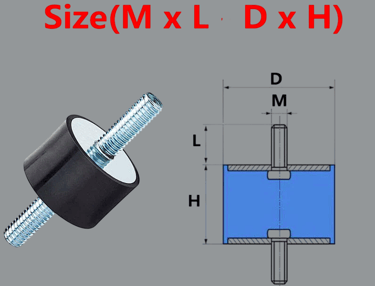

Flexotech Bobbin Mount

Versatile Cylindrical Anti-Vibration Isolators for Light & Dynamic Loads

Flexotech Bobbin Mounts (also known as cylindrical mounts or sandwich mounts) are compact, double-ended rubber-metal bonded isolators designed to absorb vibration, shock, and noise in both dynamic and static applications. Their simple cylindrical shape and symmetrical metal inserts make them ideal for compression or shear loading in a variety of orientations.

These mounts are commonly used in electrical panels, small machinery, pumps, compressors, and HVAC systems, providing cost-effective vibration damping and structural protection.

Design Features

• Cylindrical body with rubber core bonded to metal plates or studs on both

  ends.

• Available in male/male, male/female, or female/female thread options

• Suitable for both axial and radial load applications

• Manufactured from high-grade natural rubber for durability and long service life

• Available in various diameters, heights, and rubber hardness levels (Shore A)

• Compact, lightweight, and economical design

Key Benefits

• Ideal for isolating vibration and low-frequency noise

• Versatile mounting orientation: vertical, horizontal, or angled

• Fast, simple installation — no need for brackets

• Helps reduce wear and tear on surrounding equipment

• Works well in confined spaces

• Available in custom sizes and hardness ratings

Applications

Trusted in a wide range of industries:

• Control Panels & Electrical Cabinets

• Laboratory Equipment & Measurement Devices

• Refrigeration Units & Compressors

• Pumps, Blowers, and Small Motors

• Generators and HVAC Systems

• Light-Duty Industrial Machines
